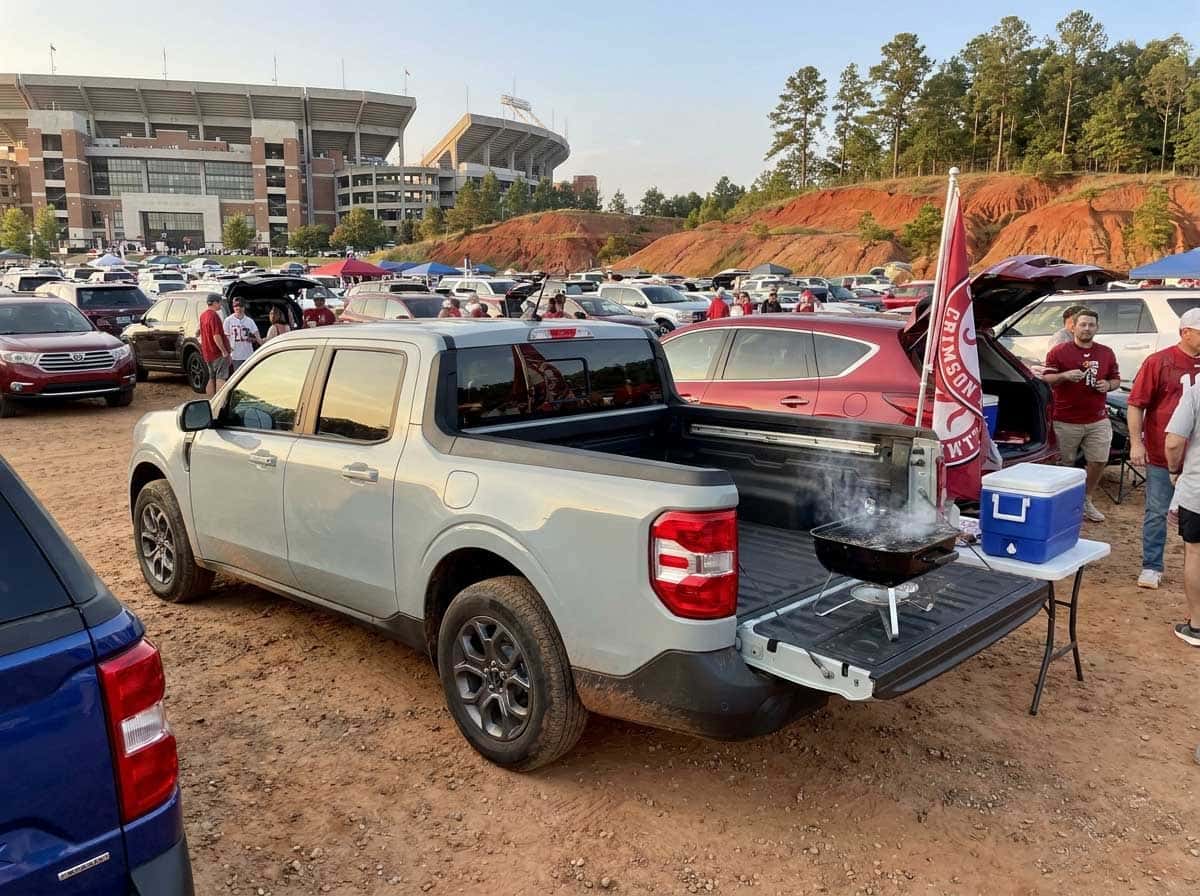

Ford Maverick Tailgating Setup for Smaller Parking Spaces

You pull in early, find your row, and then the guy next to you leaves you about 14 feet of clearance. Welcome to game-day parking in central Alabama. Set up behind a full-size truck here and you’re eating tailgate in the driving lane. The 2026 Maverick, at roughly 199.8 inches overall, or about 16.7 feet, fits where bigger pickups simply don’t, and its FLEXBED system means you keep setup quality without paying for it in footprint. We’ll walk you through how to configure the bed, position the tailgate, anchor your gear, and run power, all without nudging the car in the next space.

What Do You Need Before You Start?

Before you load anything, you need three measurements and a short gear list, because the Maverick rewards prep done at home far more than improvising in the parking lot, and the two numbers that make or break the setup are your cooler length against the floor and your table footprint against the wheel-well width. Run down the gear and the specs below so you’ll size things right before you load up.

Measure two things at home before you load. Check the footprint of your folding table, or a cutting board, against that 42.6-inch wheel-well width, and your cooler’s length against 54.4 inches. A standard 48-quart hard cooler runs about 28 inches long. Two of them fit end-to-end with a few inches to spare. A single 65-quart model takes up most of the floor, which shifts your grill and prep area to the tailgate surface itself, so you’ll want that space clear.

Setting Up Your Maverick Tailgate Station, Step by Step

The Maverick handles a full tailgate in a tight lot as long as you build outward from the truck instead of copying a 6.5-foot F-150 bed, and the shorter 4.5-foot bed that looks like a handicap on paper is the same thing that keeps your setup contained when the row is jammed. Done right, it holds up better in a tight lot than you’d guess. The gate stays close, your gear stays reachable, and neighbors don’t feel crowded.

Step 1: Back in, leave at least 6 feet behind you.

Back-in parking is non-negotiable in a compressed lot. Ford lists the Maverick’s overall length at approximately 199.8 inches. With the tailgate fully dropped, the gate itself extends the truck’s footprint by another 21 inches or so. Six feet of clearance behind your bumper gives you a comfortable tailgate zone, and you won’t push into the row behind you. If the lot runs especially tight, use the mid-position instead. We cover that in Step 3.

Step 2: Pre-pack the bed at home in the order you’ll need things.

Load in reverse-use order, so what you need last goes in first and deepest into the bed. Ice and drinks in a cooler go against the cab wall where they stay cold and out of the way. Prep items and the portable grill come in last so they’re first out at the tailgate. Run a cam strap across the cooler using at least two of the FLEXBED tie-down points. It stays put on the drive over.

Step 3: Choose your tailgate position based on your space.

Space dictates which of the three settings you’ll pick, and the multi-position tailgate is where the Maverick shines in tight lots. The tailgate has three settings.

• Fully closed (travel position).
• Mid-position (the gate locks level with the top of the wheel wells, rated for up to 400 pounds). It extends the bed surface over the gate without dropping the gate all the way to the ground. In a tight row, this is the setup. The gate projects only about 10-12 inches past the truck’s bumper in mid-position rather than the full 21-inch drop.
• Fully open (rated for up to 500 pounds, maximum flat surface area, but requires more clearance behind you).

You’ll change between them by moving the support cables. No tools. Swapping positions takes seconds.

Step 4: Build your serving surface over the wheel wells.

The 42.6 inches between the wheel wells is the spot that trips up a first setup, because a standard folding table won’t sit flat on the bed floor where the wheel wells rise partway. The fix is simple. Slide a 2×6 board into the FLEXBED’s horizontal slots on each side to create a level platform at wheel-well height. The slots are stamped into the bed walls and accept standard-dimension lumber straight from a home improvement store. Rest a piece of 3/4-inch plywood cut to about 53 inches by 20 inches across the top of those 2x6s and you have a full-width prep surface that turns the bed into a countertop.

Step 5: Position the grill at the tailgate, not inside the bed.

Keep your heat source (propane, charcoal, or a compact flat-top) on the dropped tailgate surface or on a folding stand positioned right at the truck’s bumper. You don’t want grill heat inside the bed with your cooler and food. The tailgate surface works well as a landing zone for cooked food and a spot for condiment bins. Make sure the grill’s legs don’t overhang the tailgate edges, and never leave it unattended on the gate surface.

Step 6: Run power from the bed’s built-in circuit.

Every 2026 Maverick comes with a pre-wired 12V bed circuit, standard. Plug in a compact tire inflator, a Bluetooth speaker, or a small LED string light without running an extension cord from the cab. If your truck is equipped with the available 120V outlet, that gives you enough wattage for a small electric griddle, a portable blender, or phone charging for the whole crew. Confirm whether your specific build includes the 120V option. It’s available but not universal across all trims.

Step 7: Secure everything with at least four tie-down points before you go inside.

The Maverick’s FLEXBED includes up to 10 available tie-down points. When you step away from the lot, run straps over the cooler, collapse any loose gear, and either lock a tonneau cover if you have one or at minimum cam-strap the big items down. Parking lots at busy venues draw foot traffic from every direction, so don’t leave loose gear behind.

Schedule a Pre-Game Service Check

Your Pre-Lot Checklist

Use this list the morning of, before you leave the driveway, so nothing’s forgotten.

• [ ] Cooler packed and cam-strapped to FLEXBED tie-down point
• [ ] Grill and fuel loaded last, on top or nearest the tailgate
• [ ] 2×6 boards (if using a plywood platform) loaded in FLEXBED lumber slots
• [ ] Extension cord or power strip packed if using the 120V outlet
• [ ] Folding chairs collapsed and standing upright along the passenger-side bed wall
• [ ] Food and prep items in a separate bin, accessible without digging
• [ ] Tonneau cover latched or cam straps run over remaining gear
• [ ] 12V or 120V outlet connection tested at home the day before

The Quick Recap Before You Head Out

The Maverick works in tight game-day lots because its footprint stays genuinely compact, roughly 16.7 feet overall, and the multi-position tailgate controls how far you extend into shared space, though you’ll only get that payoff if you plan the pack-in around a shorter bed. Where the FLEXBED earns its keep is in the details. Standard lumber slots for a built-up surface, up to 10 tie-down points to keep gear from moving, and a pre-wired 12V circuit so you’re not running cords from the cab. The limitation to respect is that 4.5-foot bed. You don’t have an F-150’s real estate, so a disciplined pack-in sequence, cold storage to the cab wall and heat to the tailgate, keeps the setup functional without chaos.
